Handheld laser cleaning machine

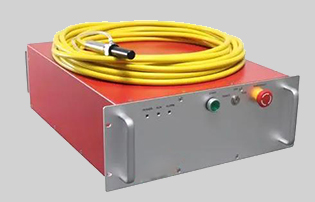

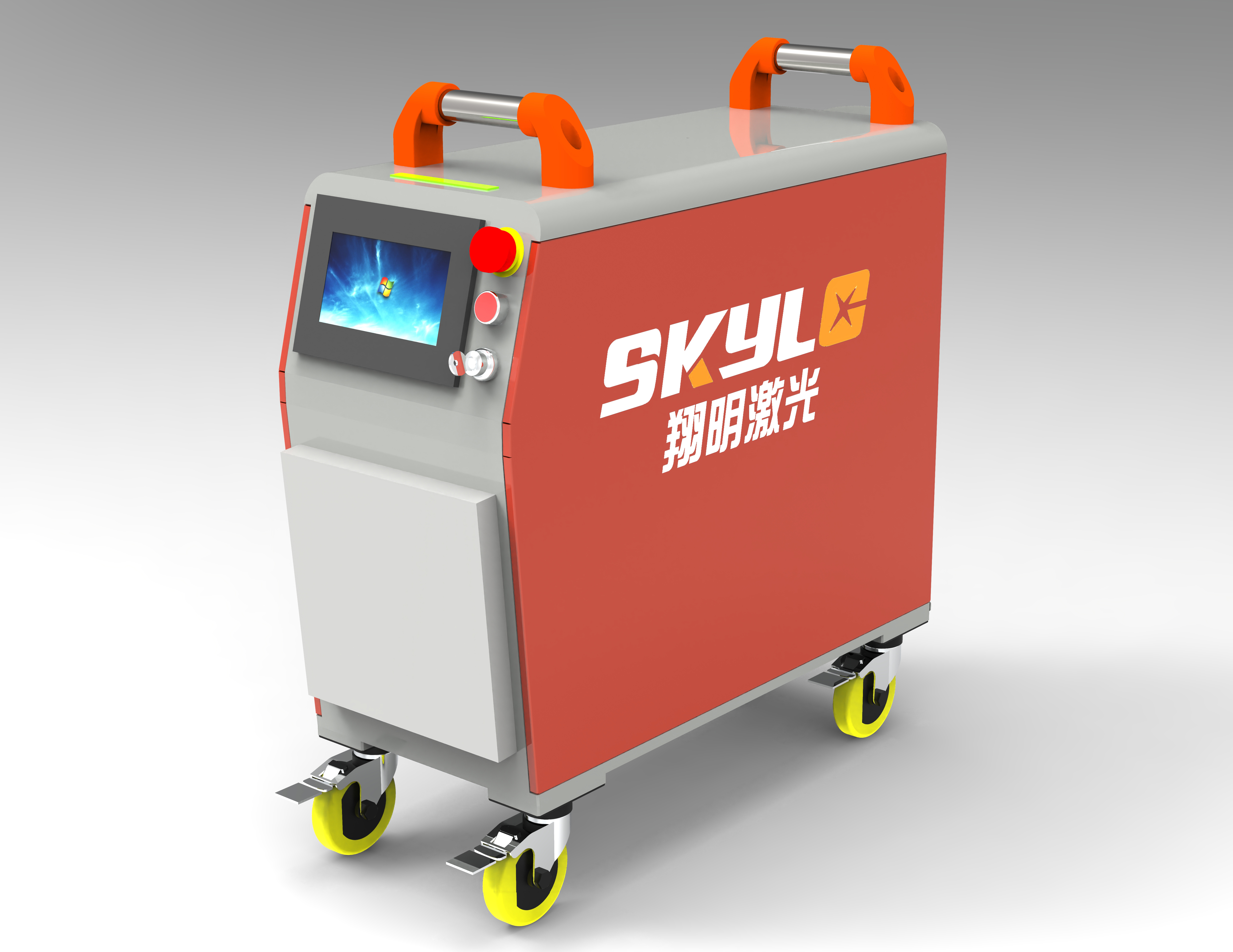

Handheld 200/300W pulse laser cleaning machine
Equipment model
CL-H-200 CL-H-300
Laser power
200W/300W
Equipment weight
60kg
Cleaning head weight
1.3kg
Fiber length
5m
External dimensions
783mm * 300mm * 784mm
Cooling method
air cooling
Laser wavelength
1064nm
Maximum single pulse energy
1.5mJ (single mode) 5mJ (multimode)
Scanning width
5-100mm adjustable
Scanning graphics
一~⚪▲∞ 10 scanning graphics to choose from
Power consumption @25℃
< 1000W/< 1500W
Supply pressure
0.4MPa, clean compressed air with water and oil removed
Online consultation
Phone Number:
+8617343354890
Handheld 200/300W pulse laser cleaning machine
Handheld 200/300W pulse laser cleaning machine
Handheld 200/300W pulse laser cleaning machine
Handheld 200/300W pulse laser cleaning machine
Handheld 200/300W pulse laser cleaning machine
Handheld 200/300W pulse laser cleaning machine
Product advantages
01
Professional customized laser light source
High beam quality, wide range of pulse width adjustment; Focusing on laser cleaning applications
02
Anti shake technology
Handheld cleaning effect comparable to automation
03
Light control technology
Solve the problem of edge burning and ensure uniform and consistent cleaning quality
04
Over ten years of process precipitation
Full coverage of application scenarios
05
Multiple security measures
Laser triggering status cannot be turned on, external emergency stop safety interlock, custom delayed light output, etc
06
Ultra high cost performance ratio
The product has stable performance and is capable of handling factory environments.
Application area

This series of products is mainly used for cleaning various metal surfaces with localized rust, paint, coatings, oil stains, oxide films, and other pollutants. It is the best substitute for workshop polishing tools and can also be used for cleaning non-metallic substrates such as ceramics, glass, and composite materials.

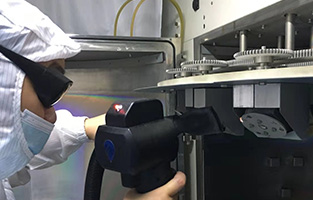

Typical application scenarios include cleaning of natural oxide film on aluminum alloy before welding, cleaning of black and gray oxide on battery trays after welding, cleaning of welds on train bogies before non-destructive testing, cleaning of automotive sheet metal parts before refurbishment, and cleaning of parts of steel components such as small holes and grooves that cannot be reached by wire brushes.

Video presentation
Sample display

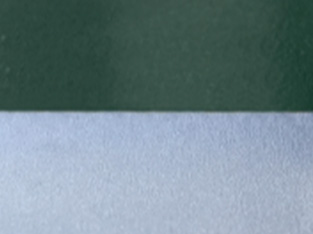

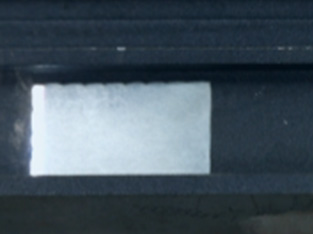

Cleaning coating

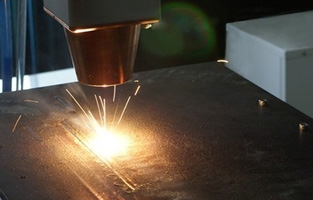

Cleaning the paint layer

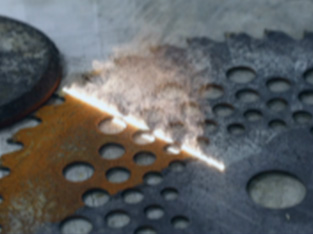

Derusting

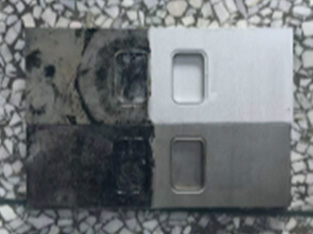

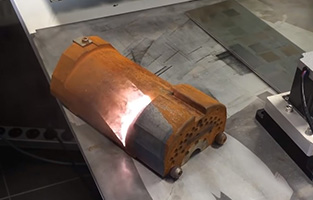

Cleaning rust

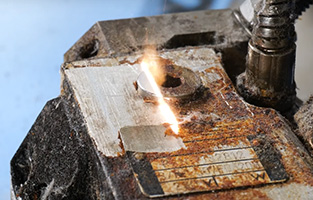

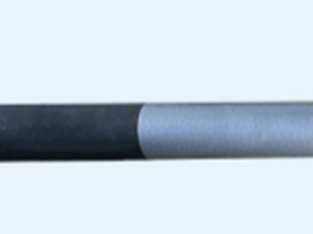

Cleaning corrosion

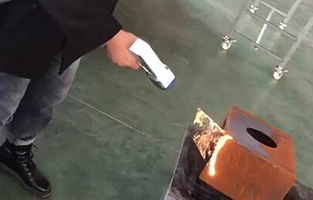

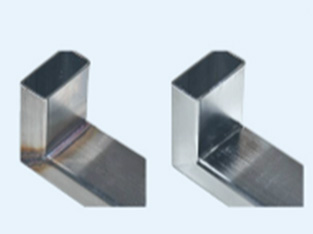

Clean the weld seam




<
