Products
Handheld laser cleaning machine

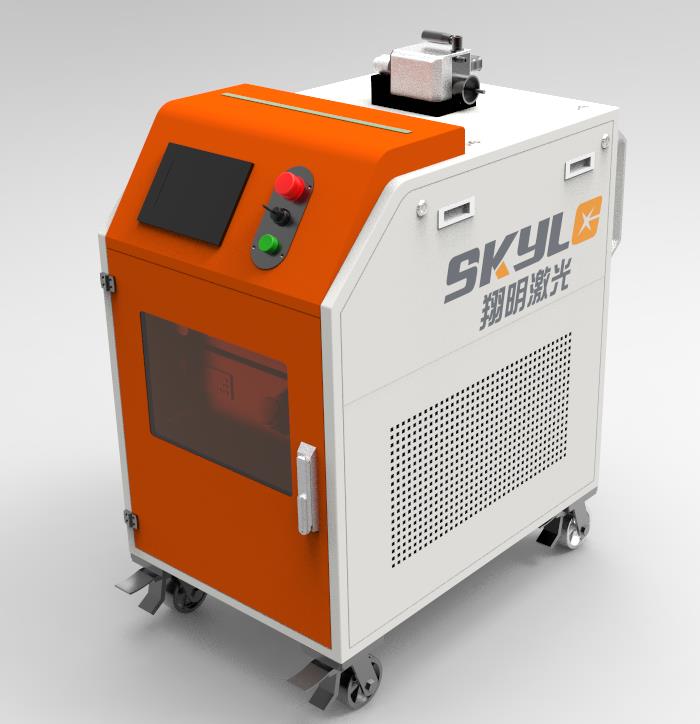

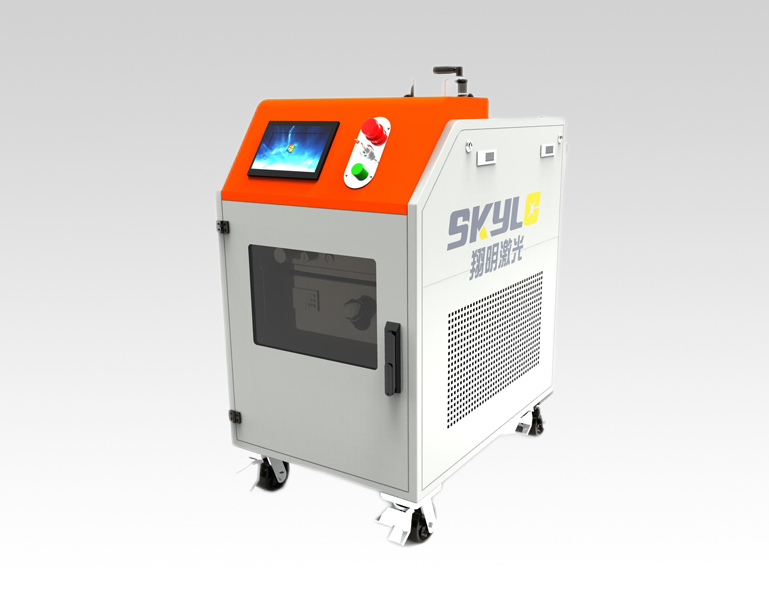

Handheld 500W/1000W pulse laser cleaning machine
Equipment model
CL-H-500/1000W
Laser power
500W/1000W
Equipment weight
approximately 180kg
Cleaning head weight
4.5kg (single mode) 2kg (multiple mode)
Fiber length
10m
External dimensions
913mm * 573mm * 881mm
Cooling method
water cooling
Laser wavelength
1064nm
Scanning width
5-150mm adjustable
Scanning graphics
一~⚪▲∞ 10 scanning graphics to choose from
Power consumption @25℃
< 4000W/< 6000W
Supply pressure
0.4MPa, clean compressed air with water and oil removed
Online consultation
Phone Number:
+8617343354890
Handheld 500W/1000W pulse laser cleaning machine
Handheld 500W/1000W pulse laser cleaning machine
Handheld 500W/1000W pulse laser cleaning machine
Handheld 500W/1000W pulse laser cleaning machine
Handheld 500W/1000W pulse laser cleaning machine
Handheld 500W/1000W pulse laser cleaning machine
Handheld 500W/1000W pulse laser cleaning machine
Handheld 500W/1000W pulse laser cleaning machine
Product advantages
01
Ultra light hair cleaning with flexible operation
02
Can clean different shaped parts
03
Infrared indicator focusing
04
Sealed case, dust-proof and heat-resistant
05

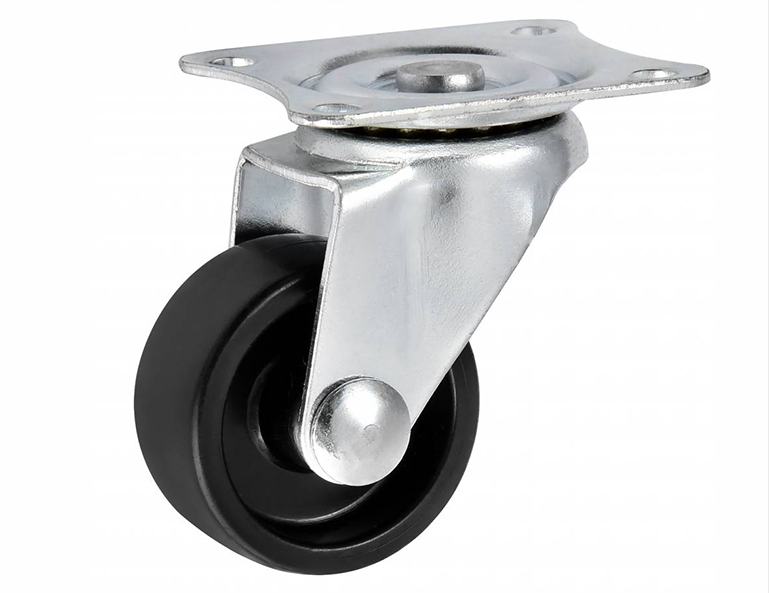

Flexible movement with universal wheels
06
100-1000W power full coverage
Application area

This series of products is mainly used for cleaning various metal surfaces with localized rust, paint, coatings, oil stains, oxide films, and other pollutants. It can also be used for cleaning the surfaces of non-metallic substrates such as ceramics, glass, and composite materials. Typical application scenarios include cleaning of natural oxide film on aluminum alloy before welding, cleaning of black and gray oxide on battery trays after welding, cleaning of welds on train bogies before non-destructive testing, cleaning of automotive sheet metal parts before refurbishment, and cleaning of parts of steel components such as small holes and grooves that cannot be reached by wire brushes.

Video presentation
Sample display

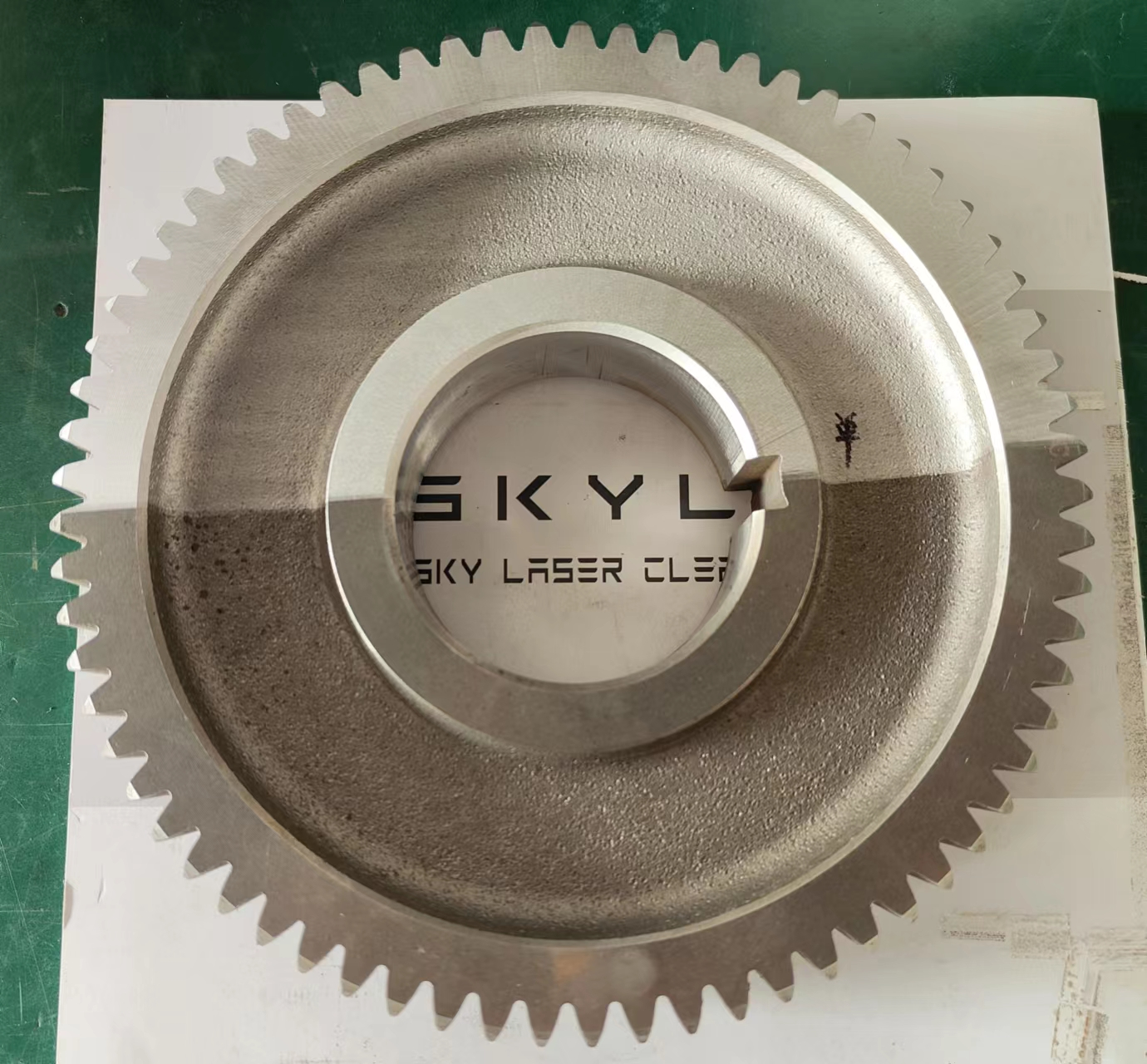

Gear surface rust

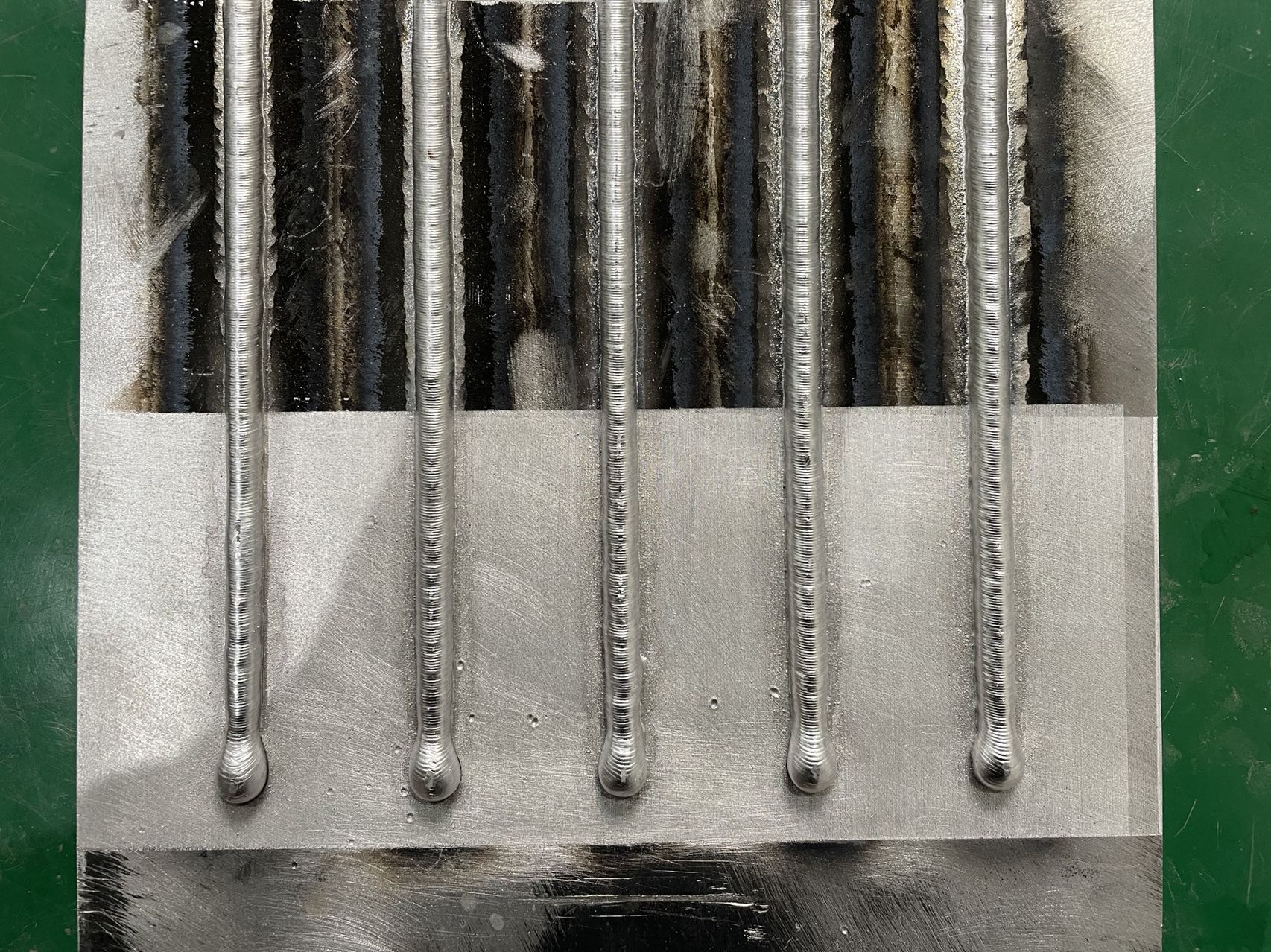

Cleaning of aluminum alloy after welding
Cleaning of oil stains on the surface of titanium steel




<
