Handheld laser cleaning machine

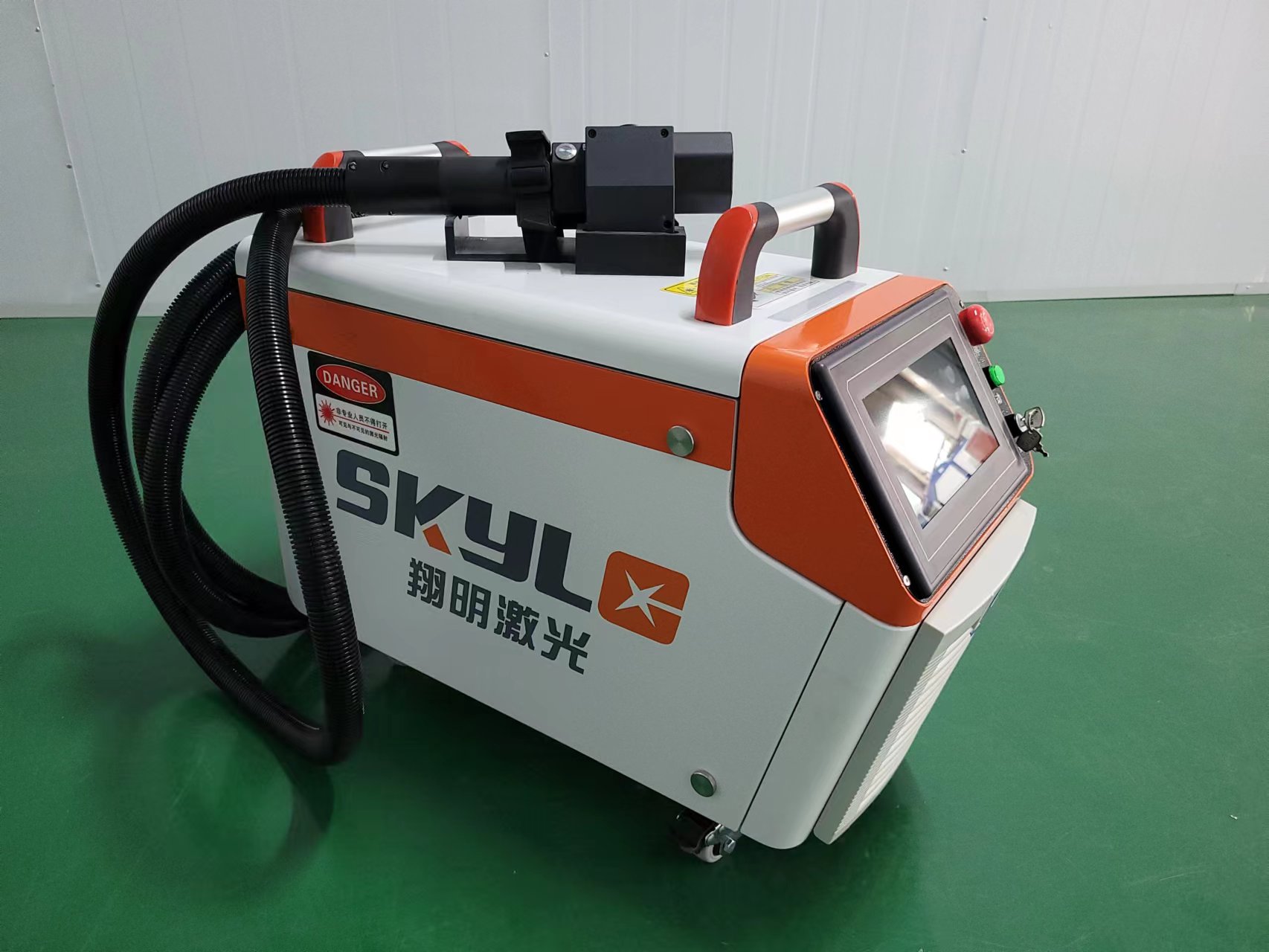

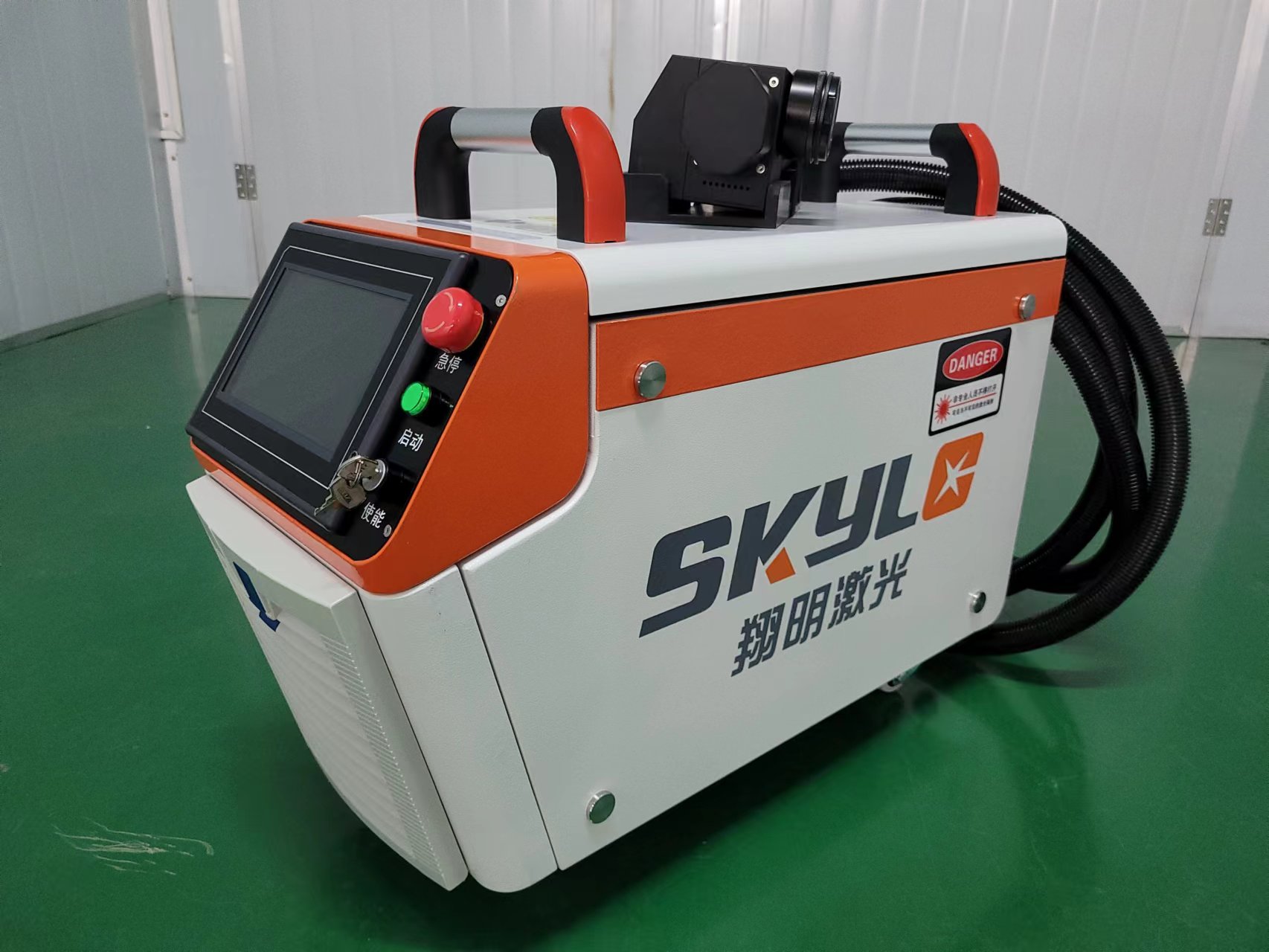

Handheld 100W pulse laser cleaning machine
Equipment model
CL-H-100W
Laser power
100W
Equipment weight
approximately 22kg
Cleaning head weight
1.3kg
Fiber length
5m
External dimensions
603mm * 258mm * 481mm
Cooling method
air cooling
Laser wavelength
1064nm
Maximum single pulse energy
1.5mJ
Scanning width
5-150mm adjustable
Scanning graphics
一~⚪▲∞ 10 scanning graphics to choose from
Power consumption @25℃
<500W
Supply pressure
0.4MPa clean compressed air with water and oil removed
Online consultation
Phone Number:
+8617343354890
Handheld 100W pulse laser cleaning machine
Handheld 100W pulse laser cleaning machine
Handheld 100W pulse laser cleaning machine
Handheld 100W pulse laser cleaning machine
Handheld 100W pulse laser cleaning machine
Handheld 100W pulse laser cleaning machine
Product advantages
01
Professional customized laser light source
High beam quality, wide range of pulse width adjustment; Focusing on laser cleaning applications
02
Light control technology
Solve the problem of edge burning and ensure uniform and consistent cleaning quality
03
Multiple security measures
Laser triggering status cannot be turned on, external emergency stop safety interlock, custom delayed light output, etc
04
Anti shake technology
Handheld cleaning effect comparable to automation
05
Over ten years of process precipitation
Full coverage of application scenarios
06
Easy to use and durable
The product has stable performance and is capable of handling factory environments.
Application area

This series of products is mainly used for cleaning various metal surfaces with localized rust, paint, coatings, oil stains, oxide films, and other pollutants. It can also be used for cleaning the surfaces of non-metallic substrates such as ceramics, glass, and composite materials. Typical application scenarios include cleaning of natural oxide film on aluminum alloy before welding, cleaning of black and gray oxide on battery trays after welding, cleaning of welds on train bogies before non-destructive testing, cleaning of automotive sheet metal parts before refurbishment, and cleaning of parts of steel components such as small holes and grooves that cannot be reached by wire brushes.


The CL-H-100W laser cleaning machine is mainly used for rust removal, paint removal, oil removal, and scale removal on metal and some non-metal surfaces, as well as cleaning of black ash, carbon deposits, and oil stains on the surface of parts after welding. Applicable to the fields of aerospace, rail transit, automotive manufacturing, marine vessels, electronic microfabrication, food processing, stainless steel and aluminum alloy products, and mold processing.



Video presentation
Sample display
Gear surface rust
Cleaning of aluminum alloy after welding
Cleaning of oil stains on the surface of titanium steel




<
