Rail transit industry

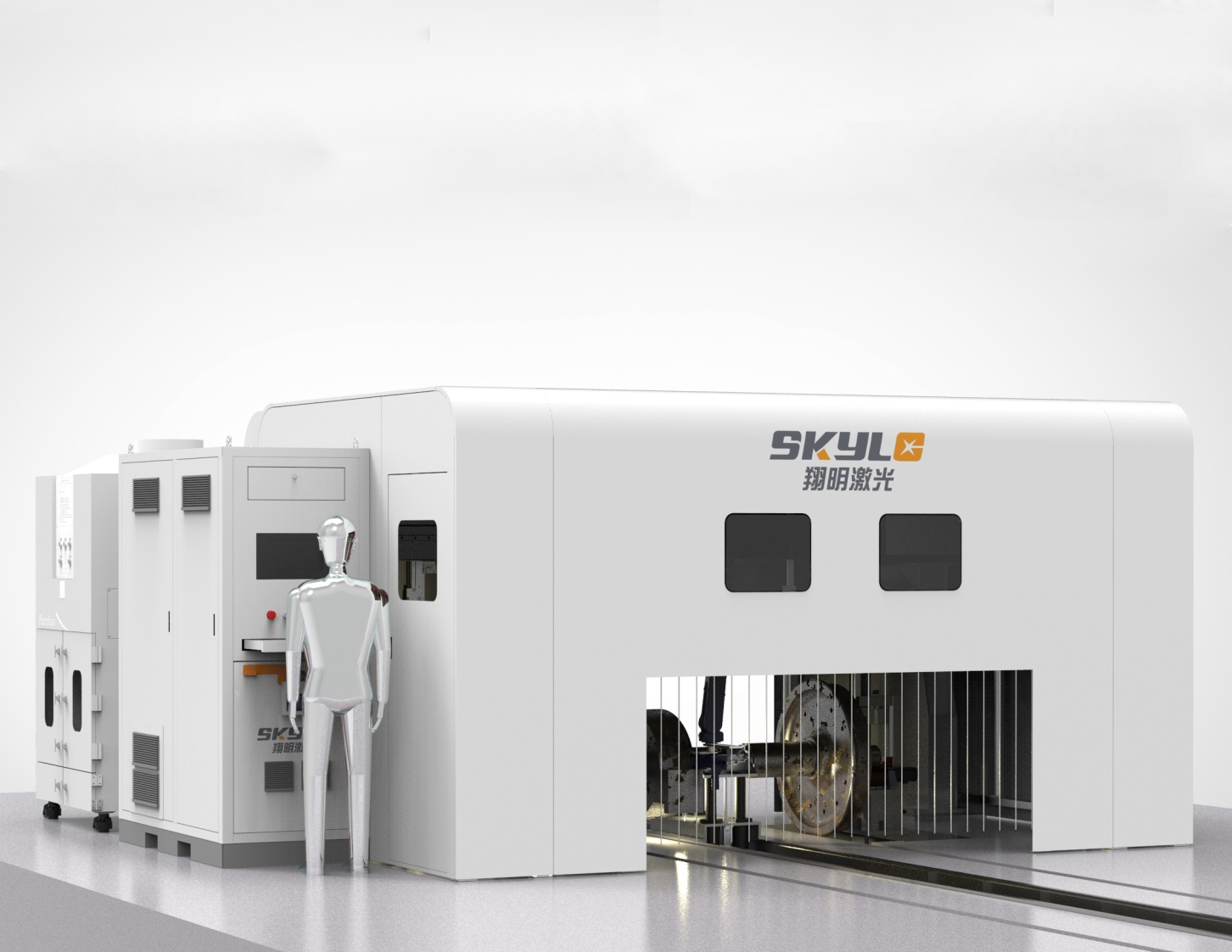

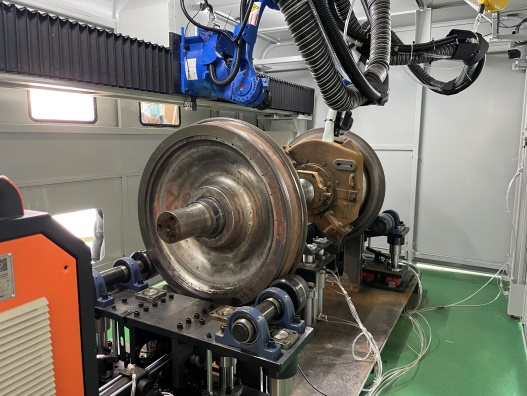

Fully automated laser cleaning equipment for train wheelsets
Average laser power
500W-4500W (optional)
Laser cleaning efficiency
10-30 minutes for a single wheelset (wheel cake+axle)
Laser center wavelength
1064nm
Scanning width
5mm~150mm adjustable
Floor area
L5300mm x W3100mm x H2700mm
Supply voltage
AC 380 ± 10% V
Mains frequency
50/60 Hz
Power consumption @25℃
45KVA
Supply pressure
0.6MPa, clean compressed air with water and oil removed
Temperature
0 ℃~40 ℃
Humidity
30-80%
Online consultation
Phone Number:
+8617343354890
Fully automated laser cleaning equipment for train wheelsets
Fully automated laser cleaning equipment for train wheelsets
Fully automated laser cleaning equipment for train wheelsets
Fully automated laser cleaning equipment for train wheelsets
Product advantages
01
High degree of automation
It can achieve one click fully automatic cleaning, automatically identify the model and size of the wheelset, automatically call up the corresponding laser cleaning trajectory, and at the same time automatically call up different laser process parameters.
02
Accurate positioning
It can effectively avoid damage to non cleaning areas (such as gearboxes, couplings, journals, etc.)
03
Safety and environmental protection
A closed work space and synchronous smoke and dust purification system can effectively prevent the escape of smoke, paint dust, rust dust, etc., and avoid polluting the work environment and causing adverse health effects on workers.
Application area

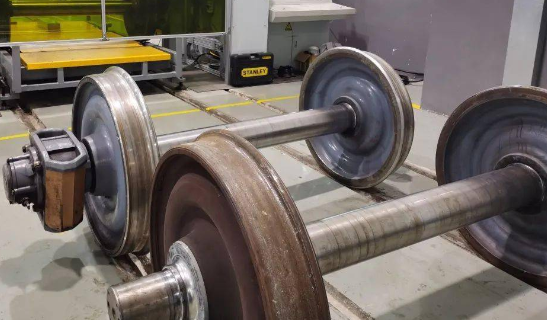

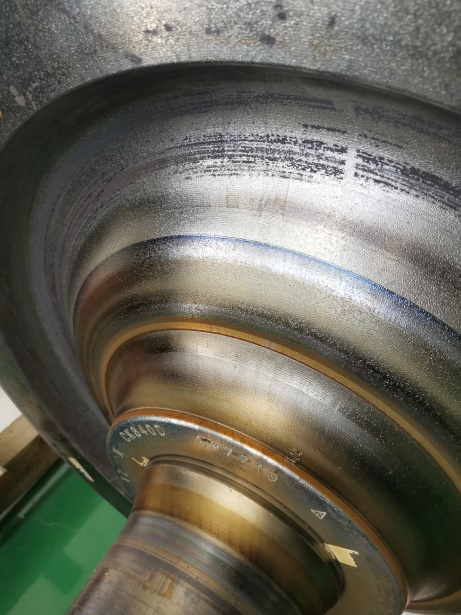

This equipment is mainly used for cleaning surface coatings and rust and oil stains on the wheels of all national standard high-speed trains, high-speed trains, subway high-speed trains, and trailers.




<
