Customized products
Large format laser cleaning equipment
Average laser power
1000W-6000W
Laser cleaning efficiency
10-100 ㎡/h
Laser center wavelength
1064nm
Scanning width
5mm~150mm adjustable
Cleaning workpiece size
width 6m, length 50m.
Supply voltage
AC 380 ± 10% V
Mains frequency
50/60 Hz
Power consumption @ 25 ℃
25KVA
Supply pressure
0.6MPa, clean compressed air with water and oil removed
Temperature
0 ℃~40 ℃
Humidity
30-80%
Online consultation
Phone Number:
+8617343354890

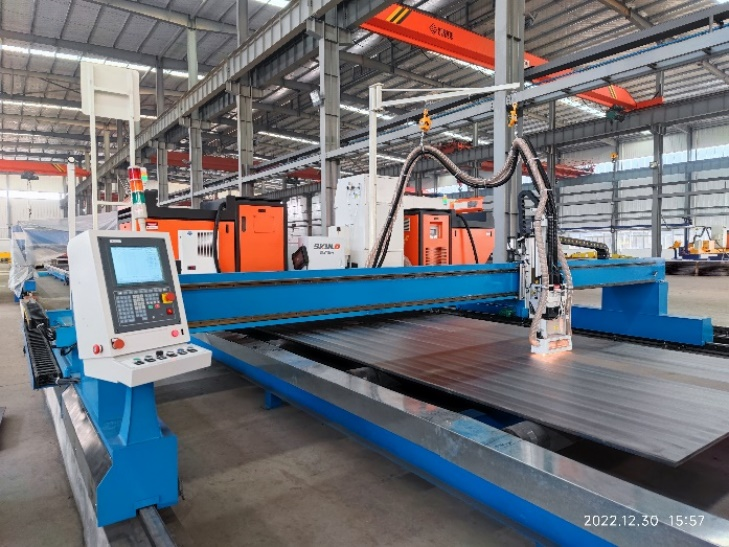

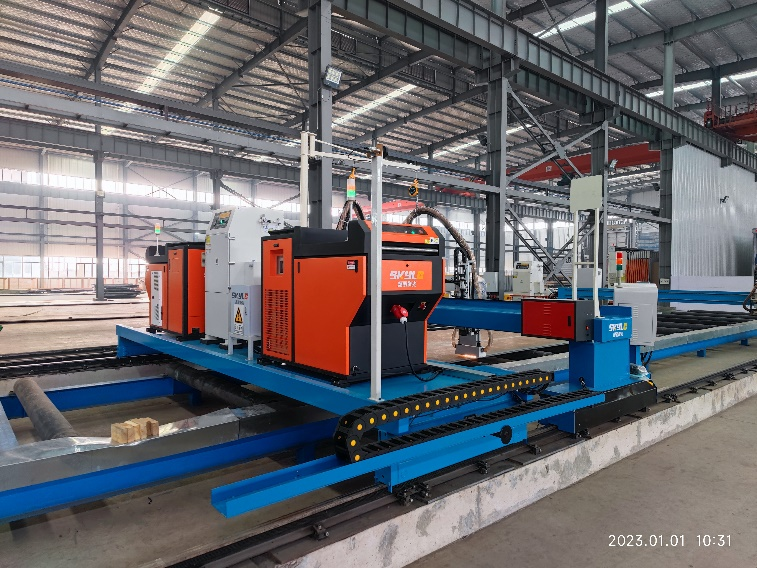

Large format laser cleaning equipment
Large format laser cleaning equipment
Application area

This equipment is mainly used for cleaning rust and oil stains on the surface of large-area steel in the steel structure industry.
Product advantages:


1. High degree of automation, capable of achieving one click fully automatic cleaning and automatically calling up the corresponding laser cleaning trajectory.


2. Accurate focus control, through the automatic focusing system, can effectively avoid the focus change caused by deformation of the workpiece.


3. The synchronous smoke and dust purification system can effectively prevent the escape of smoke, paint dust, rust dust, etc., and achieve real-time purification and dust removal.


4. The equipment has high stability. Through the double beam equipment, the main beam is used for controlling the movement of the laser cleaning head, and the auxiliary beam is used for installing equipment such as laser cleaning and smoke purifiers, to avoid vibration during equipment operation and affect the cleaning effect.

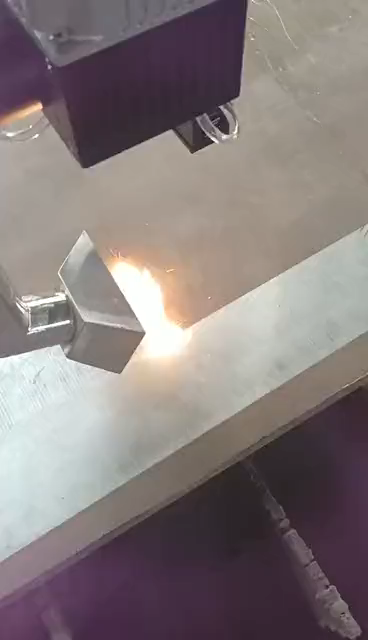

Sample display




<
