Products

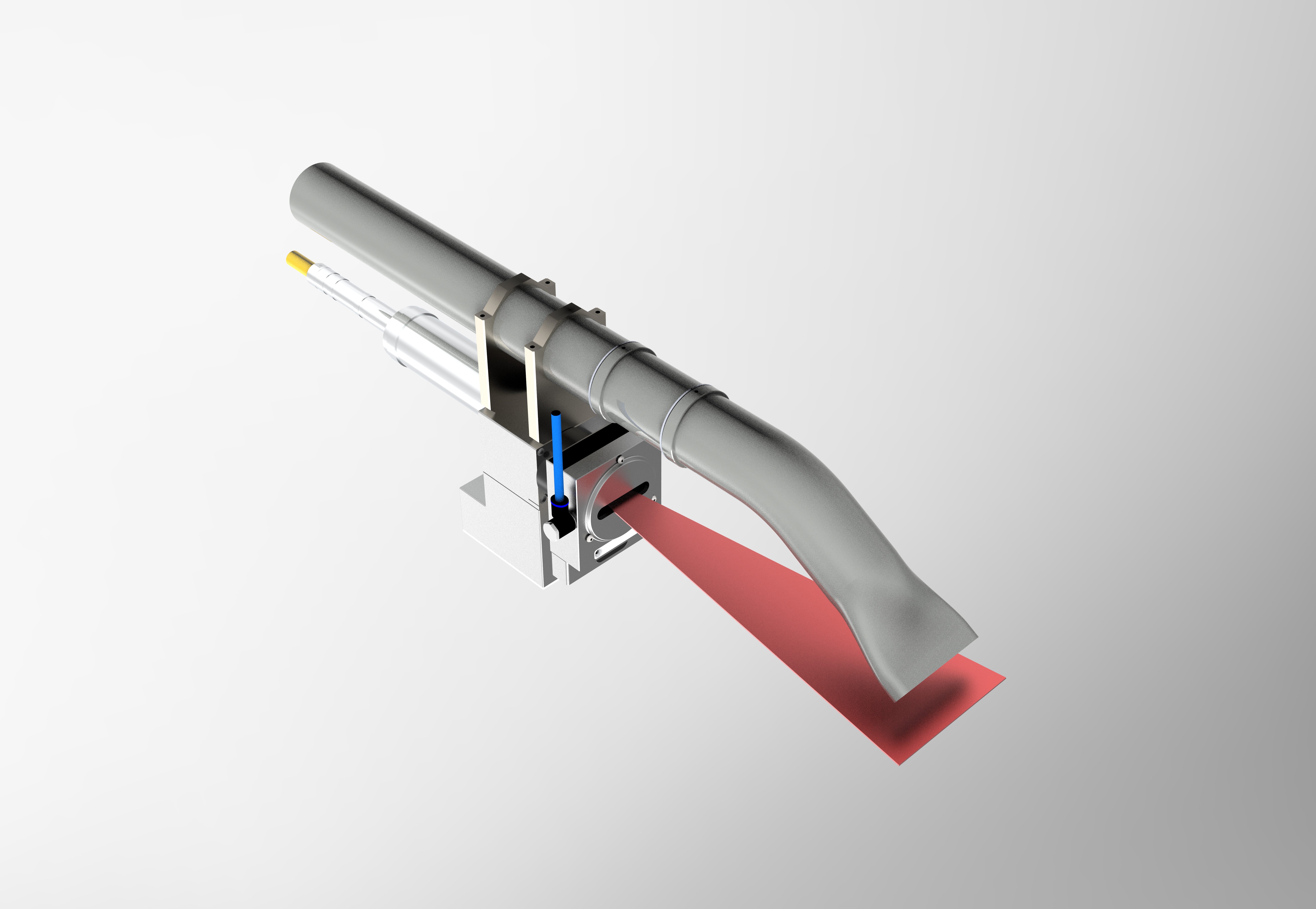

Automated laser cleaning machine
Automated 500W pulse laser cleaning machine
Equipment model
HST-500W
Laser power
500W
Equipment weight
approximately 210kg
Cleaning head weight
approximately 4.5kg
Fiber length
10m
External dimensions
L800mm x W680mm x H1000mm
Cooling method
water cooling+cabinet air conditioning cooling
Scanning width
5mm~150mm adjustable
Communication
The interface is RJ45 network port standard with S7 communication
Power consumption @25℃
<6000W
Supply pressure
0.6MPa, clean compressed air with water and oil removed
Online consultation
Phone Number:
+8617343354890
Automated 500W pulse laser cleaning machine
Automated 500W pulse laser cleaning machine
Automated 500W pulse laser cleaning machine
Automated 500W pulse laser cleaning machine
Product advantages
01
Professional customized laser light source
High beam quality, wide range of pulse width adjustment; Focusing on laser cleaning applications
02
Anti shake technology
Handheld cleaning effect comparable to automation
03
Light control technology
Solve the problem of edge burning and ensure uniform and consistent cleaning quality
04
Over ten years of process precipitation
Full coverage of application scenarios
05
Multiple security measures
Laser triggering status cannot be turned on, external emergency stop safety interlock, custom delayed light output, etc
06
Ultra high cost performance ratio
The product has stable performance and is capable of handling factory environments.
Application area

This series of products is mainly used for cleaning various pollutants such as localized rust, paint, coatings, oil stains, natural/artificial oxide films, etc. on metal surfaces, including layered cleaning of paint, precise area selection cleaning of protective coatings, non-destructive cleaning of molds, etc. It can also be used for cleaning before bonding, interlayer cleaning in additive manufacturing, and cleaning of non-metallic surfaces. Typical application scenarios include manual cleaning of the oxide film before welding the storage tank ring of a launch vehicle, cleaning of the oxide film before and after MIG welding of the aluminum alloy body floor of a rail crossing, cleaning of the black and gray oxide after welding, cleaning of the side panel of the galvanized sheet top cover of an automobile before brazing, cleaning of the KTL coating on the power battery top cover, and cleaning and repairing of the ineffective layer of insulators.

Video presentation
Sample display
Cleaning coating
Cleaning the paint layer
Cleaning rust
Cleaning corrosion
Clean the weld seam




<
