Automated laser cleaning machine

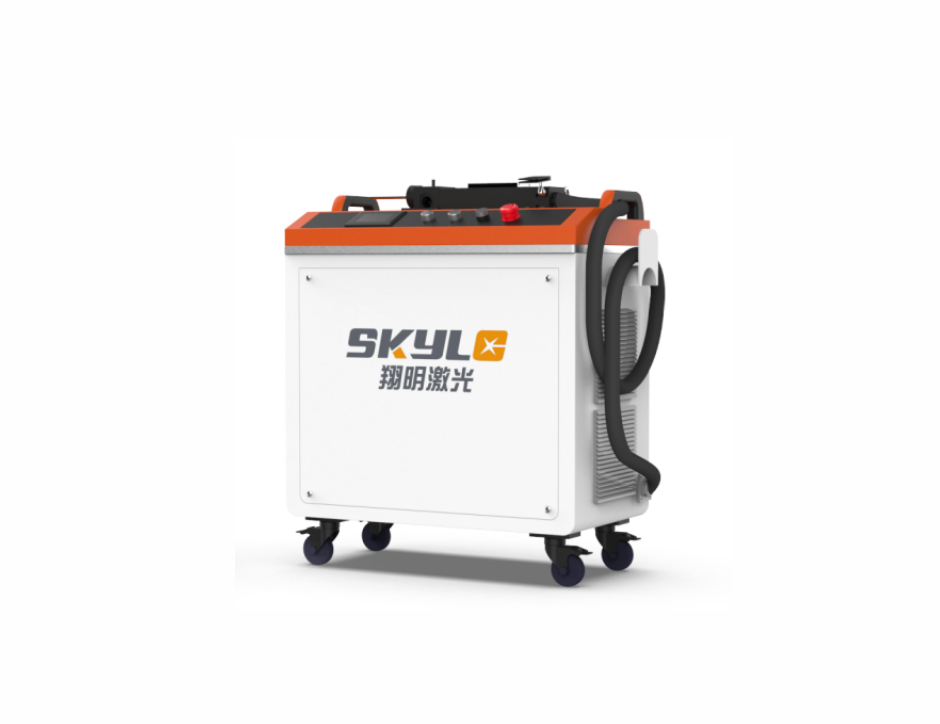

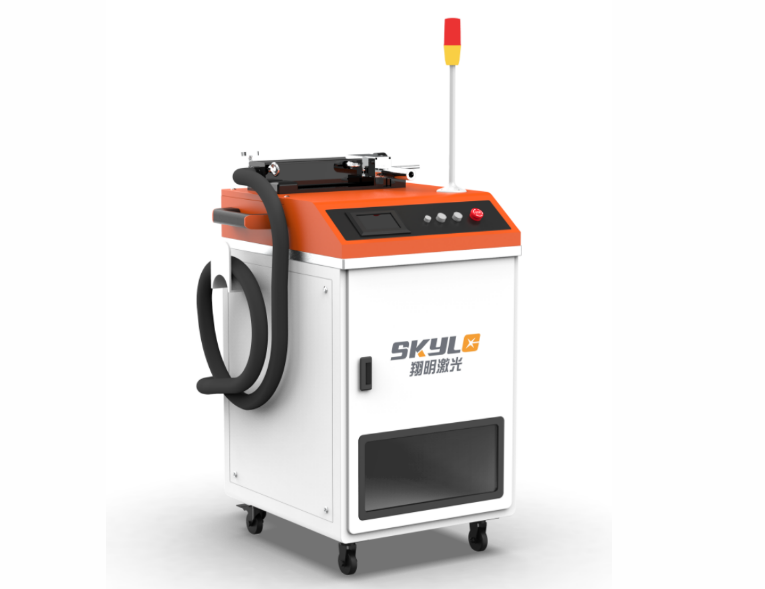

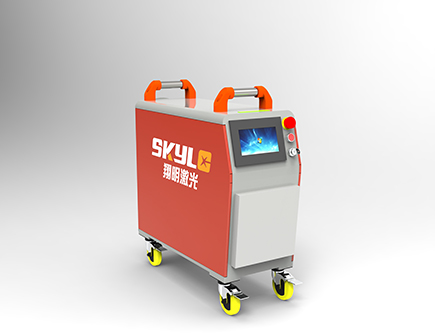

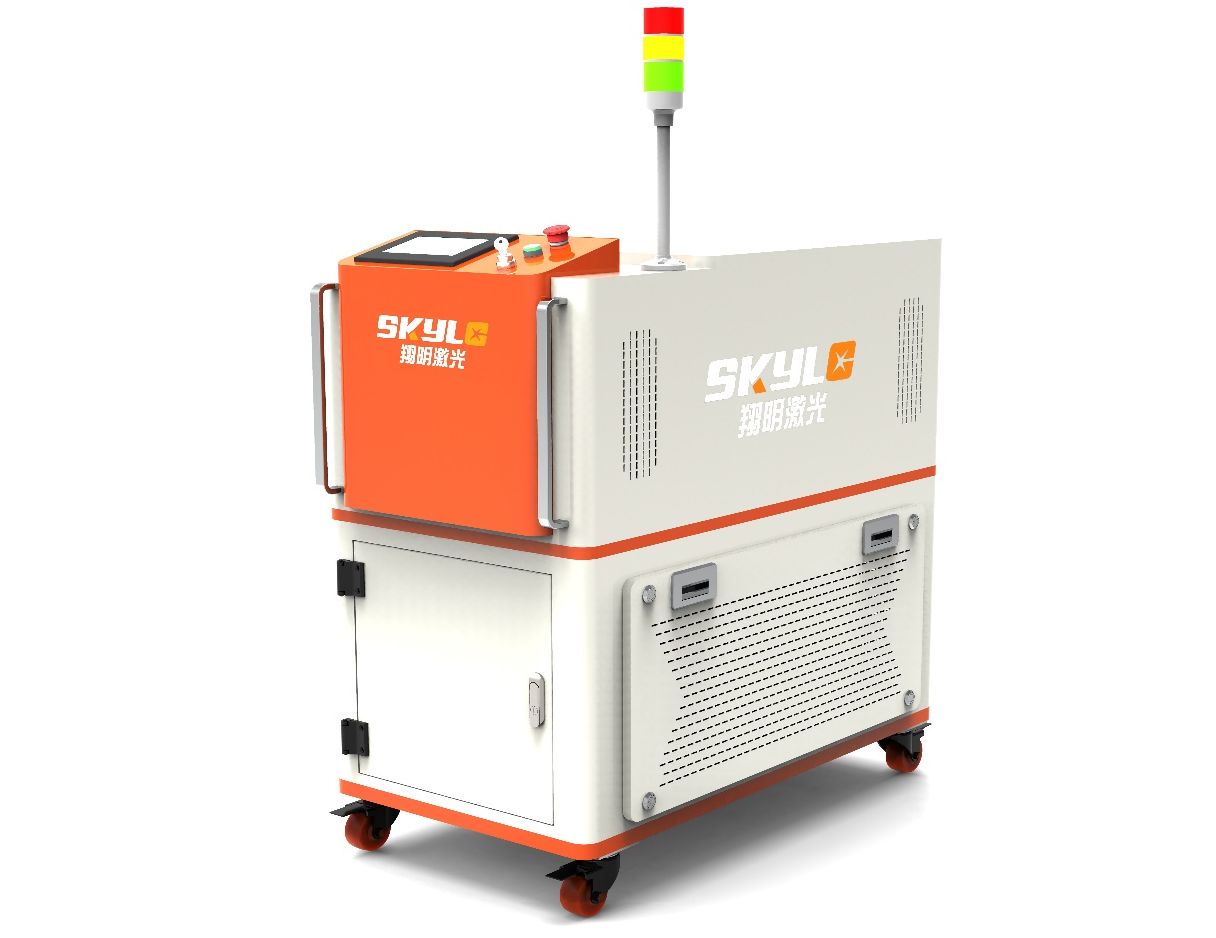

Automated 1000W/1500W/2000W continuous laser cleaning machine
Model
SLC-1000W/1500W/2000W
Average laser power
1000W/1500W/2000W
Laser center wavelength
1080nm
Scanning width
5mm~200mm adjustable
Cooling method
water cooling
Fiber length
10m

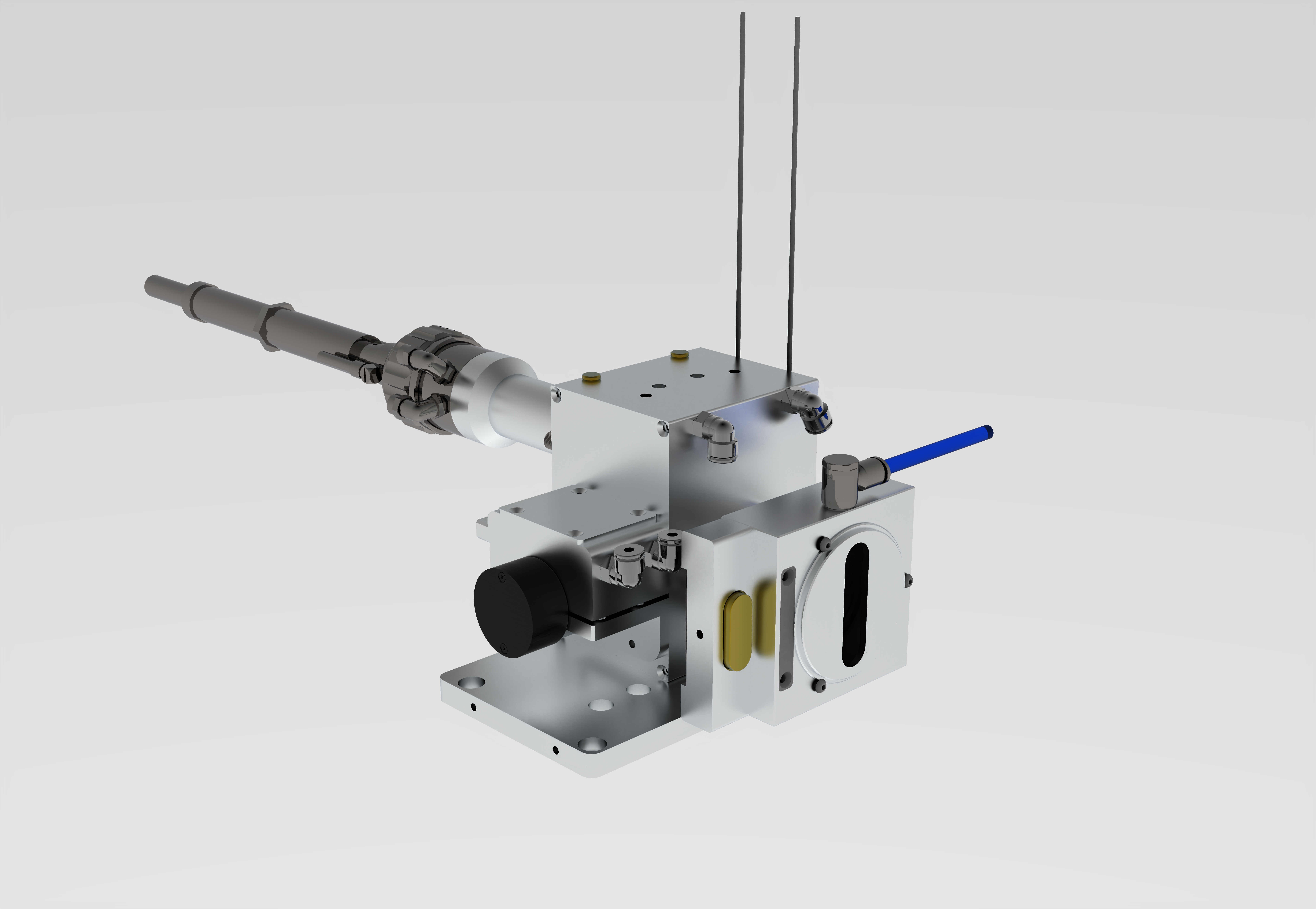

Cleaning head weight
approximately 4.5kg
Net weight of the whole machine
approximately 170kg/200kg
Case size
L1100mm x W550mm x H1100mm
Communication
The interface is an RJ45 network port, and S7 communication is standard
Supply voltage
AC 220 ± 10% V
Mains frequency
50 Hz
Power consumption @25℃
< 6kW < 8kW < 10kW
Supply pressure
0.6MPa, clean compressed air with water and oil removed
Online consultation
Phone Number:
+8617343354890
Automated 1000W/1500W/2000W continuous laser cleaning machine
Automated 1000W/1500W/2000W continuous laser cleaning machine
Automated 1000W/1500W/2000W continuous laser cleaning machine
Automated 1000W/1500W/2000W continuous laser cleaning machine
Application area

This series of products is mainly used for cleaning various pollutants such as localized rust, paint, coatings, oil stains, natural/artificial oxide films, etc. on metal surfaces, including layered cleaning of paint, precise area selection cleaning of protective coatings, non-destructive cleaning of molds, etc. It can also be used for cleaning before bonding, interlayer cleaning in additive manufacturing, and cleaning of non-metallic surfaces.
Typical application scenarios include manual cleaning of the oxide film before welding the storage tank ring of a launch vehicle, cleaning of the oxide film before and after MIG welding of the aluminum alloy body floor of a rail crossing, cleaning of the black and gray oxide after welding, cleaning of the side panel of the galvanized sheet top cover of an automobile before brazing, cleaning of the KTL coating on the power battery top cover, and cleaning and repairing of the ineffective layer of insulators.

Video presentation
Sample display

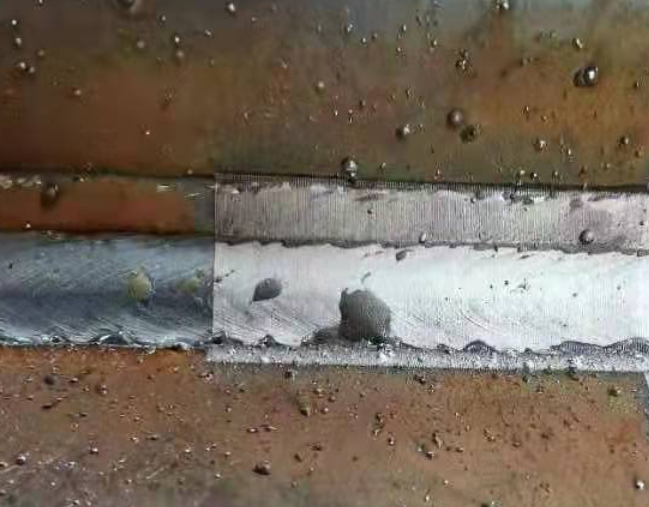

Weld cleaning

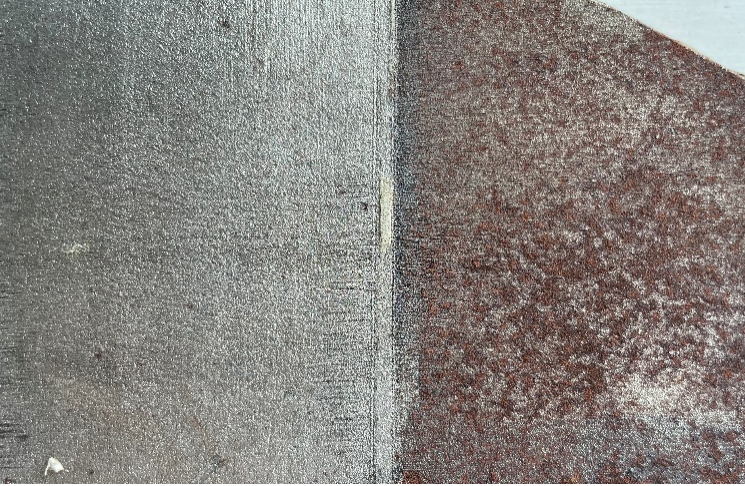

Steel plate rust removal
Pipe cleaning




<
